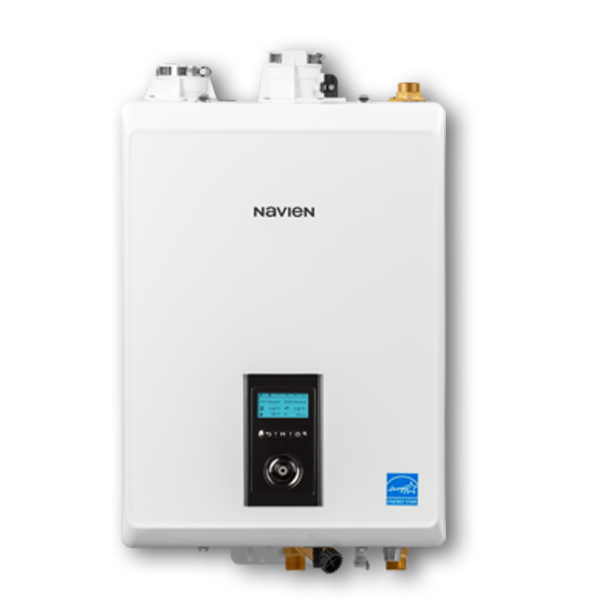

Navien NHB-H Series Boiler

Description

Navien NHB boilers offer homeowners industry-leading turndown ratios, greater installation flexibility, and heating capacity for home of all sizes.

• Dual stainless steel heat exchangers
• Integrated control panel
• Supports independent heating zones
• Compact size perfect for tight spaces & retrofits
• Four different models with BTU ranging from 55,000 – 150,000
• Dual certified for single and 2-pipe venting
• Common venting up to 8 units
• Cascading up to 16 units
• Up to 15:1 turndown ratio
• Wi-Fi compatible

As the leader in condensing technology, Navien has already reinvented the water heating industry with the award-winning NPE tankless water heaters and the NCB-H combi-boilers. Our new NHB-H boiler series is the next in a long line of innovations from Navien. All boilers have Navien’s advanced burner system, an industry-leading AFUE of 95% and turndown ratios up to 15:1.

Now available in four sizes: NHB-55H, NHB-80H, NHB-110H and NHB-150H.

The industry’s largest turndown ratio in the NHB-150H minimizes short cycling and provides better reaction to changing heating demands throughout the year.

Built-in hardware to connect & control a boiler pump, 3 zone pumps or 3 zone valves

With Navien’s new PCB design you now have the ability to connect and control a boiler pump, 3 zone pumps or 3 zone valves, all integrated in the unit.

Advanced interface & controls

Navien’s new backlit control panel is simple and intuitive to use with its color‑coded plain text display, and an innovative click wheel for easy navigation through setup, operation, diagnostics, and more.

NHB-H Stainless Steel Manifold Kit

This system-matched stainless steel manifold kit is just another high-quality accessory to help make your installation faster and easier. The kit includes the space heating supply isolation valves, space heating return isolation valves, PRV/air vent/LWCO adapter tree, threaded connection adapter with clip and LWCO plug.

NHB-H primary manifold kit
GXXX002396

NHB-H Models:

NHB-55H

Max HTG Input: 55,000 BTU/h

Indoor wall-hung

Residential/Commercial

NHB-110H

Max HTG Input: 110,000 BTU/h

Indoor wall-hung

Residential/Commercial

NHB-150H

Max HTG Input: 150,000 BTU/h

Indoor wall-hung

Residential/Commercial
